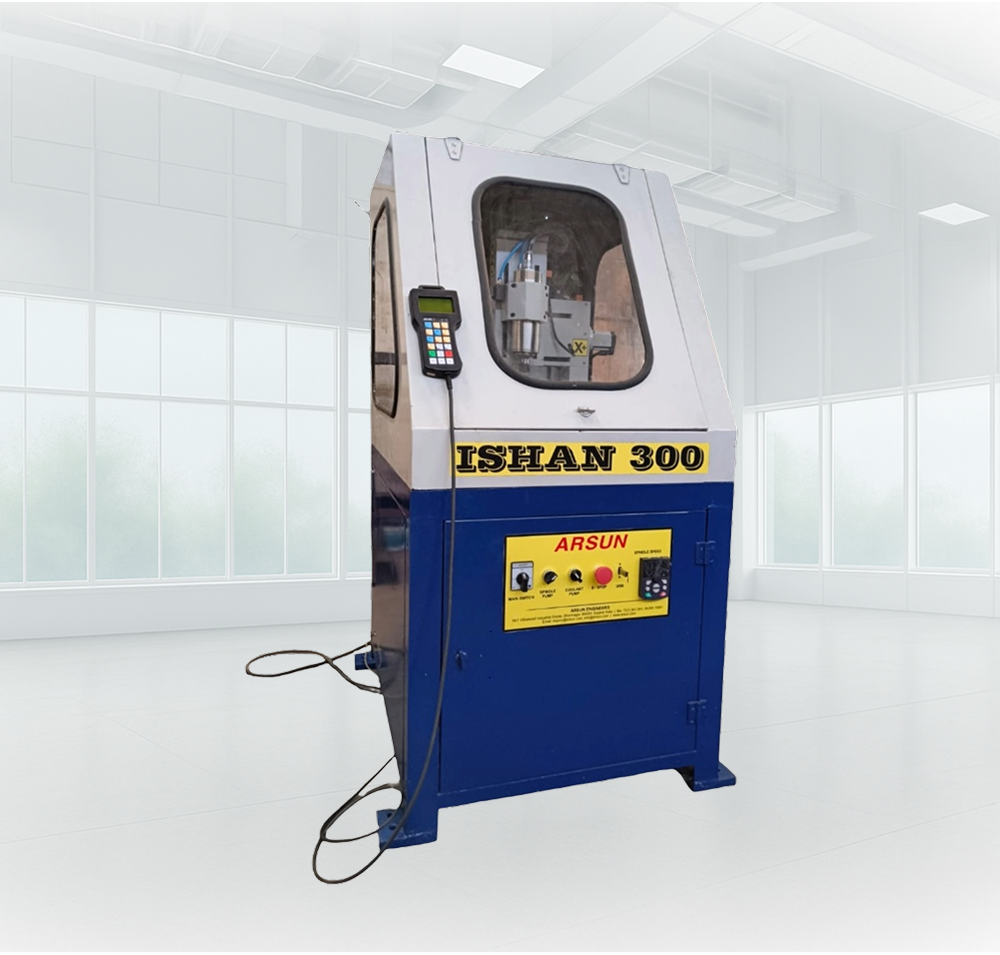

CNC Engraving Machine - ISHAN 300
FIXED GANTRY – MOVING TABLE – BED TYPE Construction, comprises of well-ribbed bed, thick-walled rugged gantry, well-ribbed table – all these major parts are made of graded cast iron and mounted on a heavy-duty steel fabrication for rigidity and stability.
ISHAN Series Machines, up to 4-axis, are built with Servo Motors / Precision Ball Screws / LM Guideways / 24000rpm water-cooled Spindle Motor, which all-to-gather with its sturdy construction offers vibration-free smooth movement of all axes while working.
2D and 3D Engraving
Capable of 2D/3D Engraving and light Milling on most of material, i.e., CI, MS, SS, D2, D3, P20, WPS,
OHNS, Carbon Steel, Aluminium, Copper, Brass, Wood, MDF, Fiber, Acrylic, Nylon, and other plastic.
CNC Controller
- Full featured handheld DSP CNC Controller with high performance core processor.
- The controller enables to use G-codes / M-codes for 3D operations.
- Allows direct import of G-codes (NC) files
Technical Specification
| Table | ||
|---|---|---|
|
Travel |
mm |
290/350/125 |
|
Spindle Nose to Table |
mm |
130 |
|
Diamensions |
mm |
380×450 |
|
Max Load |
kg |
50 |
|
T-slot (No x Width x Distance) |
mm |
4/12/110 |
|
Dia |
mm |
80 |
|
Max Speed |
rpm |
24000 |
|
Motor Power (Rated) |
kw |
2.2 |
|
Motor Torque (Rated) |
nm |
0.88 |
|
Spindle Taper |
|
ER20 |
|
X/Y/Z-Axis Rapid Speed |
m/min |
1.5 |
|
X/Y/Z-Axis Max Feed |
mm/min |
1500 |
|
X/Y/Z-Axis
Positioning Accuracy |
mm |
0.015 |
|
X/Y/Z-Axis Repeatability |
mm |
0.02 |
|
Power Supply |
mm |
Single Phase AC 230V/50HZ |
|
Total Weight |
kg |
350 |
Standard Accessories
- Lamp
- Lubrication Pump
- Coolant Pump & Tank – 2 set
- Clamp & Nut – 4 nos.
- Collet – 4 nos.
- Spanner – 2 nos.
- Allen Key Set
- Anti Vibration Pad – 4 nos.
Optional Accessories
- Rotary Attachment (4th Axis)
- Tool Zero Presetter
- Industrial Chiller
- Stabilizer
- Cutter Grinder
- Software
Application
- Manu. of small Punches, Dies, & Moulds
- Printing / Cutting / Embossing Dies & Tools
- Vacuum Forming Dies
- Electrodes for Spark Erosion
- Engraving for Rubber Stereos
- Sign Making, Gift Articles, Mementos
- Control Panel Plates, Name Plates
- Solid Models
- Light Milling Work
Samples made on our CNC Engraving Machines
Working with ISHAN 300
We Are Known For
Application of CNC Engraving Machine
CNC engraving machines are primarily used for precision marking, cutting, and 2D and 3D engraving on a wide range of materials such as metals, plastics, acrylic, and composites. In the automotive and aerospace industries, they are essential for engraving serial numbers, barcodes, logos, and part identification directly on components, ensuring traceability and compliance with safety standards. Jewelry and watch manufacturers also rely on CNC engraving for intricate designs, personalization, and branding on precious metals with a high level of detail.
In the electrical and electronics sector, CNC engraving is widely used for creating control panels, printed circuit board (PCB) prototypes, and detailed labeling on metal and plastic casings. They also find strong application in branding and packaging, where engraving adds permanent and tamper-proof marks on products. The ability to combine aesthetic detailing with functional marking makes CNC engraving machines versatile tools across multiple industries.
